PLFY-P VBM
Ceiling Cassette, 4-way airflow - 950x950mm
The larger 950x950mm power cassette VBM offers 72 different airflow patterns, making it ideal for applications with
ceilings up to 4.2 meters in height. With optional: 360º i-See temperature sensor, and an automatic elevating panel.
Capacity range:
- PLFY-P VBM: P32 / P40 / P50 / P63 / P80 / P100 / P125
Wide Airflow
The new horizontal vane provides wide-angle airflow, ensuring wall-to-wall cooling. The improved
design has reduced the fan speed by 20%, helping to eliminate draughts.
Less Cold Draft
The newly adopted "cool draught reduction mode" ensures the cool air is distributed horizontally.
This mode eliminates direct currents of cold air to avoid a draughty sensation.
* Setting by remote controller is required.
Independant Vane Direction setting
The airflow direction of each vane can be easily adjusted and controlled via a wired remote controller.
Adjusting the vane directions makes our PLFY-VBM series suitable for many different interior layouts, and can
also cater for cooling & heating requirements during seasonal transitions.

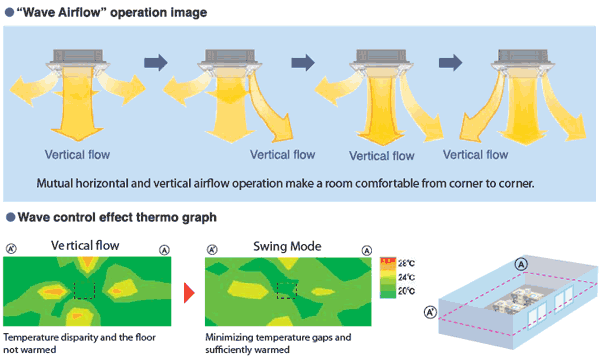

Wave Airflow Mode for Heating
The vanes can be programmed to swing automatically to provide better airflow distribution.
A time lag between vane movements minimises any temperature disparities in the room.
Auto Fan Speed Mode
For improved comfort levels, the fan speed adjusts automatically according to the difference
between the room temperature and desired set temperature. In cooling mode, operation starts
with a high fan speed, and then automatically decreases once the room temperature reaches the desired set point.
Quiet Operation
Quiet operation is assured thanks to improved airflow distribution and the larger sized fan.
Other Features
Stylish vane shutter (when the unit is off)
Drain up–max. 850mm
Wireless remote controller available
Fresh air intake duct (option)

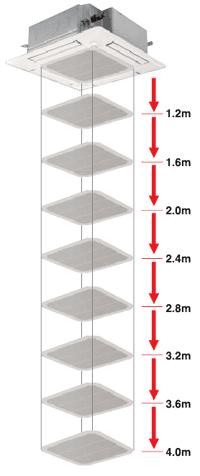

Optional: Automatic Elevating Panel
Easy to use. easy for maintenance.
With 8 levels to fit all ceiling heights. Filter cleaning and other maintenance can be easily undertaken.
Automatic elevation up to 4 meters.
*The receiver on the elevating panel can be used with a wireless remote controller.

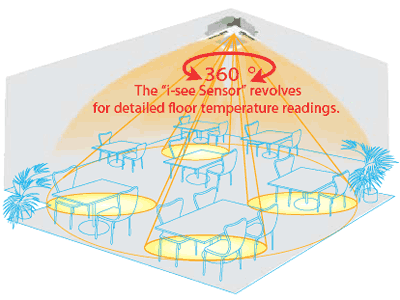

Optional: 360º i-See Temperature Sensor
The "i-see" sensor is a radiant temperature sensor, an engineering concept exclusive to
Mitsubishi Electric. Capable of taking readings by rotating 360°, the i-see sensor can measure
and correct temperatures at floor level, providing you with complete control and comfort.
|
