How the 2 pipe Heat Recovery System Operates
 The World's First and Only "2-Pipe" Heat Recovery System
The Innovative BC Controller Which Makes a 2-pipe System Possible

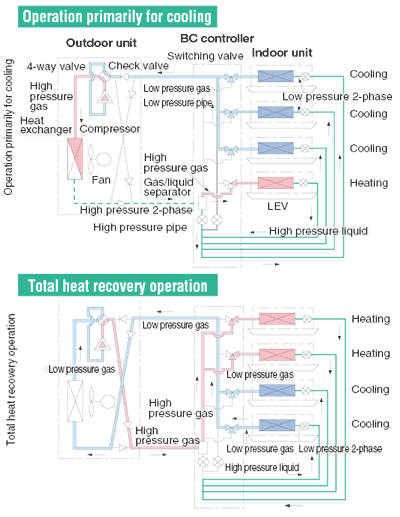

BC Controller Operation
New Blocking Technology and Refrigerant Circuits Give Powerful Performance and Simple Piping Structure
Newly Developed Solenoid Valve / Check Valve Block
Increased reliability comes from a simple piping configuration. The new blocking approach leads to reduced pressure loss, lighter outdoor units and simpler refrigerant piping.
Solenoid valve block
Check valve block
Heat Exchanger Refrigerant Flow Runs Opposite to Airflow
Redesign of the refrigerant circuit means that the flow of the refrigerant in the outdoor unit's heat exchanger is "one way" whether during heating or cooling. Refrigerant flow consistently runs opposite to airflow guaranteeing high performance.
R2 outdoor units and refrigerant circuit
R2 outdoor unit refrigerant flow
|
