 Space Saving
New Model Outdoor Unit Has One of the Smallest Installation Footprints in the Industry
The installation space for each outdoor unit, including service space, has been reduced to 1.52m2 (8·10HP), one of the smallest in the industry. Moreover, the units are among the lightest now available, with weights of only 240kg and 255kg for the 8HP and 10HP Y models respectively. As a result, they take up relatively little space and easy to transport. An added advantage is the top-flow construction, which allows outdoor units to be installed together regardless of the series in a single area, saving even more space when multiple units are involved.

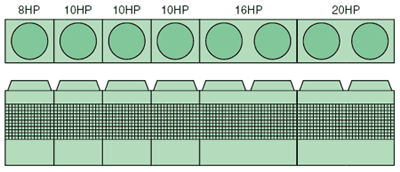

In line installation of outdoor units
Installation footprint including service space
PUHY-(P) 200/250YMF-C
PUY-(P) 200/250YMF-C
PURY-(P) 200/250YMF-C | |
PQRY-(P)200/2550 YMF-B |
Basic space required
A space of at least 250 mm is necessary at the back for inlet air. Taking
servicing, etc. from the rear into account, a space of about 450 mm
should be provided, the same as at the front.
 Basic space required (Pdf Format 318Kb)
12 pages - Installation space around outdoor units.
The BC Controller for Heat Recovery System (R2 / WR2) Has Been Made More Compact.
Innovation leads to a more compact, lighter model. A 13-16 branch connection model allows the industry’s first Heat Recovery System with 16 indoor units connectable. (15 units connectable to 8HP model)
Previous BC Controller
(10 branches) | | New BC Controller
(10 branches) |  | | Cubic volume 57% decrease Weight 41% decrease (10 branches).With product height of 290mm, installation flexibility greatly increased. |
| Branches | | Conventional (CMB-P-V-D) |  | New (CMB-P-V-E) | Dimension
(H X W X D:mm) | Weight
(kg) | Dimension
(H X W X D:mm) | Weight
(kg) | | 4 | 340 X 644 X 491 | 51 | 290 X 676 X 360 | 29 | | 5 | 340 X 687 X 491 | 55 | 290 X 676 X 360 | 32 | | 6 | 340 X 730 X 491 | 59 | 290 X 676 X 360 | 34 | | 8 | 340 X 906 X 457 | 67 | 290 X 676 X 360 | 39 | | 10 | 340 X 1,060 X 457 | 75 | 290 X 676 X 360 | 44 | | 13 | Not Available | 290 X 1,126 X 360 | 54 | | 16 | Not Available | 290 X 1,126 X 360 | 61 |
Machine Rooms are No Longer Necessary. The Enhanced, Efficient Use of Space Has Been Made Possible.
Extremely compact outdoor unit
This allows for easier positioning, provides extra flexibility during installation, and makes Mitsubishi Electric's outdoor unit highly suited for residential applications.
| Multi-S outdoor unit and 5 HP unit comparison | | | Multi-S | | Area(m2) | 0.36 | | Volume(m2) | 0.46 | External dimensions
HxWxD(mm) | H1,280 x W1,020 x D350 |
|
