G-50A: CENTRALISED & WEB Central Controller
Groups: x 50 / Indoors: x 50 - With Web Server Functions!
Up to 50 units of packaged air conditioners can freely be monitored and operated! Furthermore, it has enabled the Monitoring and Operation Via a Web Browser on a Personal Computer connected to it using a LAN or telephone line!
Features:
- Simple and Flexible:
This new generation controller is suitable for small to large systems with simple to complex functionse.
- Web Browser:
Enables monitoring and operation of air conditioning units using a PC with Microsoft Internet Explorer.
- Remote Access:
Allows users to remotely monitor and operate the air conditioning units using a PC connected to a telephone line.
- Auto Alarm:
In the case of any malfunction, necessary information will be sent to a mobile phone and/or personal computer by e-mail.
- Easy to Upgrade:
Various new functions will be introduced gradually and can easily be down loaded into any existing G-50A.
Example:
Energy Monitoring
Demand Control
Yearly Schedule
Specifications:
| Item |
Specifications |
| Air conditioner to be connected: |
Multi-split air conditioner (City Multi)
Air conditioner for shops (Mr. Slim) |
| Manageable number of units to be connected: |
50 indoor units per unit of G-50 |
| Power supply: |
DC 12V, DC24V (It supplies from exclusive power supply unit: Model Name is PAC-SC 50KUA-E) |
| Outer dimensions: |
120mm x 300mm x 79mm (Height x Width x Depth) |
| Product weight: |
1.0kg |
| Rated current: |
0.2A (DC12V), 0.02A (DC24V) |
| Rated power: |
3W |
| Environment for use: |
Ambient temperature: 0 – 40°C,
Ambient humidity 30 – 90% (as no dew condensation) |
Main Functions:
| Operation and setting of the air conditioner |
· Operate/stop
· Operation mode change
· Temperature setting
· Air speed change
· Air direction change |
| Monitoring of the air conditioner |
· Operating state (operate/Stop)
· Operation mode monitoring
· Set temperature monitoring
· Trouble monitoring
· Air speed change
· Air direction change |
| Schedule function |
Scheduled operation for a week is possible |
| External input and output function |
It is possible to send out operation, stop and abnormality outputs. It is possible to perform emergency stop, and to start and stop operation externally. |

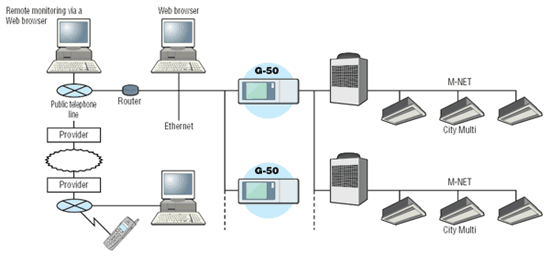

System Structure:

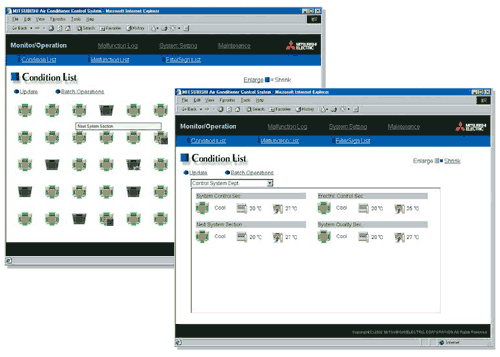

Web Screen:
Example of display icons (air conditioner icons):
 |
Operation |
 |
Stop |
 |
Occurrence of abnormality |
 |
Operation/ Occurrence of a filter sign |
 |
In timer operation |
 |
Lossnay on |
 |
Under energy-saving control |
|
