| PRODUCT RANGE | INVERTER SINGLE-SPLIT SYTEMS - R410A | INVERTER COMPACT FLOOR | MFZ-KA SERIES - INDOOR UNITS |
|
|
|
|
|

|
|

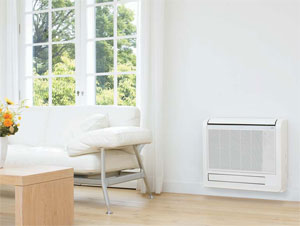

| DC Inverter Compact Floor Console |
|
SRP:
*see note:
$3,049.99
|
| BDT Code: 68953I |
|
Compact Floor Console indoor unit - inverter heat pump with infra red remote. Cooling/Heating capacity: 2.5/3.4kW. (WxDxH, mm): 700 x 200 x 600. Weight: 14kg. Liquid / Gas Pipe (OD, mm): 6.35 / 9.52. Requires a SUZ-KA25VA outdoor unit or can be used in a customisable MXZ-2A52, 3A54, 4A/B71, 4A/B80, 5A/B100 or 8A140VA Multi-Split System. |
|
* SRP Note:
The Retail Price is for a complete single split system.
A single split system uses the outdoor unit: SUZ-KA25VA.
Installation is an extra charge, this should be discussed when you get your in-home quote from a Mitsubishi Electric Authorised Specialist.
|
|
|
Features
|
|
|
Thermostatically controlled upper and lower air outlets.
Whisper Quiet and Energy Efficient.
This range is specifically designed to discreetly sit at floor level, making them ideal replacements for traditional floor mounted
heating appliances such as night-store heaters.
The slim-line range features independently controllable upper and lower air outlets
ensuring optimum air distribution to guarantee warm feet! A comprehensive
deodorising and air purifying filter system will ensure healthier and cleaner air.
All this is packed in to a compact floor design with the whisper quiet performance
that you have come to expect from Mitsubishi Electric.
- Slim Line and Compact Design
- Quiet Operation: 22dB(A)*
- "I-save" Mode for Preferred Setting
- Catechin Filter
- Anti-Allergy Enzyme Filter
- Energy-saving “Econo Cool”
- Swing and Auto Modes
- Auto Change Over
- 24 Hour Timer
- Optional PAR-21MAA 7 Day Wired Wall Timer
- Longer Piping Length
- Guaranteed performance down to -15°C
* For MFZ-KA25VA
Maximum Heat Output, Optimum Air Distribution
Perfect room temperatures at any time are
achieved through dual top and bottom air
flow with thermostatically controlled vanes
to eliminate cool draughts whilst heating.
Mitsubishi Electric Inverter Control (unlike other brands) will allow
maximum rated heat output indefinitely without the need to return to
the nominal rated output. Optimum comfort conditions are guaranteed in
the shortest period of time. This is vital when outdoor temperatures drop
below freezing point or when the unit is first turned on.
Unique Energy Saving Features
"i-save" Mode
With this function, settings including temperature, fan speed, and
airflow direction for both cooling and heating operation can be
saved simultaneously. This function can be used to quickly return to your
preferred settings. The “i-save” mode can be used as an energy saving
function. If the stored “i-save” settings are 2-3°C cooler than the normal
temperature setting when activated the room will be set to the cooler
temperature. When the room is reoccupied the button can be pressed to
return to the original settings.
Econo Cool
This energy saving function can be selected
in cooling mode. The temperature is
automatically set to 2°C higher, while the
airflow is switched to a swing flow. This airflow
pattern feels cooler than constant airflow
allowing reduced energy consumption.
Cleaner and Healthier Air
The combination of Catechin + Anti-Allergy Enzyme Filters ensure effective deodorisation, active filtering and the
dramatic reduction of common allergens and bacteria. This is the key to cleaner and healthier air.
In addition to the "Catechin Filter" with deodorising effect, the "Anti- Allergy Enzyme Filter" traps
dust mites and their droppings, pollen and other allergens on the filter
filament, then decomposes them with artificial enzymes.*2 What's
more, a sterilising agent combats bacterial and viral effects, all in
all supporting a cleaner and healthier air supply.
*2 : Confirmed by the Japan Spinners Inspecting Foundation. Test
numbers 007715-1, 007715-2. / Confirmed by Shinshu University.

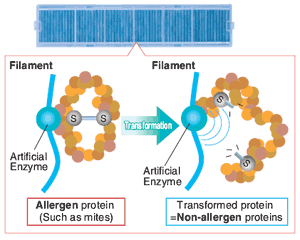

"Anti-Allergy Enzyme Filter" mechanism
1. Artificial enzyme catalyst on the filament traps the allergens.
2. The artificial enzyme catalyst helps the chemical reaction with Oxygen and severs the S-S bonds.*3
3. Proteins with severed S-S bonds are no longer allergen proteins.
*3 : Mites and other allergen protein consist of
sulphur atoms (S) that have bonded together.
Auto Change Over Function
When the desired temperature is reached, the system automatically
switches between cooling and heating modes. The selected room
temperature can be maintained without user intervention.
For example, when it’s frosty in the early morning the unit will operate on
heating to maintain a set point of 22°C in heating mode. When the sun
rises the unit can switch to cooling to maintain the 22°C set temperature.
Whisper Quiet Operation
Mitsubishi Electric have a long standing reputation for offering some of
the quietest models in the industry. The Deluxe MFZ-KA range is no
exception. At only 22 dB(A) on its lowest fan speed, the MFZ-KA25 is
super quiet. You want to feel the warmth, not hear it!
Trouble-Free Installation and Maintenance
To install the indoor unit, position with our original installation plate
then set the unit in place. Easy levelling work prevents any harm to wall
surfaces. Generous pipe length, up to 30 metres*4, eliminates worries
about outdoor unit distance. Loaded with automatic diagnosis function,
fault recall mode and other sophisticated aids, troubleshooting is immediate
though problems are rare.
*4 : MFZ-KA50VA
Guaranteed heating performance down to minus 15 degrees.
Not all heat pumps perform when they are needed most. Our range is
guaranteed to effectively provide heating on those cold nights or
mornings when you really need it.
Optional: Instant comfort at your fingertips
The optional wired remote controller (PAR-21MAA*) has
a weekly timer function enabling 8 separate pattern
settings throughout a single day.
An optional "Centralised ON/OFF Controller (MAC-821SC-E*)" can
also be incorporated to regulate all connected rooms in
your home (and enabling ON/OFF selection and
operation status confirmation from one single controller).
* Requires MAC-397IF-E adaptor
|
|
MFZ-KA25VA Specifications
|
|
|
|
|
|
|
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter | | · | Capacity - Cooling: 2.5 kW | · | Capacity - Heating: 3.4 kW | | · | Capacity - Cooling (min. - max.): 0.9 - 3.4 kW | · | Capacity - Heating (min. - max.): 0.9 - 5.1 kW | | · | Power input - Cooling: 0.58 kW | · | Power input - Heating: 0.84 kW | | · | Power input - Cooling (min. - max.): 0.19 - 0.94 kW | · | Power input - Heating (min. - max.): 0.19 - 1.91 kW | | · | EER / Star rating - Cooling: 4.31 / 6.0 | · | COP / Star rating - Heating: 4.07 / 6.0 | | · | Sensible - Cooling: 2.06 kW | · | Dry Mode (Moisture Removal, Litre/hr): 1.2 | | | | | · | H2 Capacity - Heating*: 3.05 kW | · | H2 Power input - Heating*: 0.79 kW | | · | H2 COP - Heating*: 3.85 | | | | | | | · | Operation Range - Cooling: -10 / +46°C | · | Operation Range - Heating: -15 / +24°C | | · | Sound Level - Cooling (Low - Super High, dB(A)): 22 / 27 / 32 / 37 | · | Sound Level - Heating (Low - Super High, dB(A)): 22 / 27 / 32 / 37 | | · | Current - Cooling [In+Outdoor] (Rated / Max.): 2.83 / 6.4 A | · | Current - Heating [In+Outdoor] (Rated / Max.): 4.00 / 6.4 A | | · | Air volume - Cooling (High, Litre/sec): 145 | · | Air volume - Heating (Super High, Litre/sec): 152 | | · | Refrigerant: R410A | · | Liquid pipe size (OD, mm): 6.35 | | · | Gas pipe size (OD, mm): 9.52 | · | Max. pipe length (m): 20 | | · | Max. pipe height (m): 12 | · | Power supply: 230V +/- 10% / Single Phase / 50 Hz | | · | Dimensions (WxDxH, mm): 700 x 200 x 600 | · | Weight: 14 kg | | · | *Note: H2 is approximate (calculated data only) | |
|
|
Warranty
|
|
|
· 5 year parts and labour warranty. For full details view the:
 Mitsubishi Electric Warranty Card - Pdf Format (50Kb) |
|
For more information
|
|
|
· Product Brochures - click here.
· Product Manuals - click here. |
|
|
· Rating Conditions (AS / NZS 3823):
Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.
Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.
· Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.
· Dry function will not work when the room temperature
is below 13°C.
· Colour: Heat pump units shown may not be colour accurate,
please ensure you view an actual unit for colour matching.
· Maximum length is inclusive of height differential. i.e. (20m length/12m high)
means the pipe can be 12m high and 8m across for a total length of 20m.
|
All features and specifications are subject to change and amendment at anytime. Where specifications are critical to design or pre-build we advise that you seek confirmation of accuracy from our product management team on (04) 560-9100.
