11.2kW Hot Water Heat Pump unit, for application such as Swimming Pools and Underfloor Heating. (WxDxH, mm): 950 x 330(+30) x 1350. Heating/Cooling capacity: 11.2/9.1kW. Weight: 121kg. Liquid / Gas Pipe (OD, mm): 9.52 / 15.88. Output temperature range from 20 to 55°C Heating and 5 to 25°C Cooling. This Split System Hot Water Heat Pump package comes complete with PAC-IF021B-E Interface Unit, LCD Wall Controller, ACH70-50H single wall stainless steel 316 brazed plate Heat Exchanger and Insulation Kit. ACH70-50H (WxDxH, mm): 112 x 125 x 526 + Insulation. Weight: 10.8kg. Liquid / Gas Pipe (OD, mm): 7/8” / 1 3/8”. Water Pipe Size: 1 ¼” / 1 ¼”.The Split System Hot Water Heat Pump allows for the Heat Exchanger to be installed wherever the Hot Water is required, to allow total flexibility for both new and retro-fit installations. Note Ancillary Equipment such as water pumps and expansion tanks are not included in this pacakge as these need to be selected by the installer to suit the requirements of each specific installation.

Features

PUHZ-RP Series :: External Heat Exchanger

Mitsubishi Electric Hot Water Heat Pumps are designed to both heat or cool water. The PUHZ-RP Series has three split systems to choose from: 11.2kW, 14.0kW, 16.0kW of heating - suitable for larger underfloor heating applications and swimming pools.

Reliable year round water heating
Inverter driven for maximum energy efficiency
Water temperatures up to 60°C
Operation at outdoor temperatures as low as -20°C
Environmentally friendly R410a refrigerant
Easy to use LCD Wall Controller with 7 Day Timer
“Eco” heating mode for outdoor ambient temperature compensation
Cooling mode available
Compact design

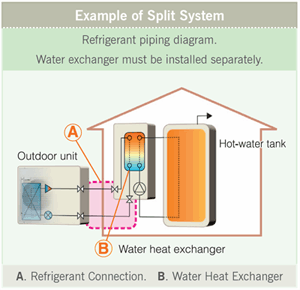

The PUHZ-RP Split System requires an external heat exchanger. The flexibility of this system allows the installer to position the heat exchanger right where the hot water is required for both new and retro-fit installations. The Alfa Laval ACH70-50H Heat Exchanger is made of 316 stainless steel brazed plate. This requires mounting and installation of refrigerant pipe work to the PUHZ-RP outdoor unit.

This system includes an interface unit and the PAR-W21 LCD Wall 7 Day Timer/Controller. The PAC-IF021B-E Interface Unit senses water flow and temperatures with inputs: ON/OFF, Mode, Set Temp. Outputs: ON/OFF, Error.

Note: Ancillary equipment such as water pumps and expansion tanks are to be provided separately by the installer, and selected to meet the individual system pressure and flow requirements. This system is supplied with the Alfa Laval ACH70-50H Heat Exchanger.

Click here for more information and features on the Hot Water Heat Pump range.

PUHZ-RP100VHA2(HB) Specifications


·	Function: Water Heating and Cooling	·	Type: Single Split Power Inverter



·	Water Temperature Heating Range: 20 to 55°C	·	Water Temperature Cooling Range: 5 to 25°C
·	Capacity - Heating (A7/W35): 11.2 kW	·	Capacity - Cooling (A35/W7): 9.1 kW
·	Power input - Heating: 2.66 kW	·	Power input - Cooling: 3.31 kW
·	COP: 4.21	·	EER: 2.75
·	Sound Level - Heating (dB(A)): 52	·	Sound Level - Cooling (dB(A)): 50
·	Nominal Water Flow Rate - Heating (l/min): 32.1	·	Nominal Water Flow Rate - Cooling (l/min): 26.1
·	Current - Heating Outdoor (Rated / Max.): 12.39 / 28.0 A	·	Current - Cooling Outdoor (Rated / Max.): 12.53 / 28.0 A



·	Operation Range - Heating: -20 / +35°C	·	Operation Range - Cooling: -5 (-15*) / +46°C



·	Power supply: 230V +/- 10% / Single Phase / 50 Hz	·	Refrigerant: R410A
·	Liquid pipe size (OD, mm): 9.52	·	Gas pipe size (OD, mm): 15.88
·	Max. pipe length (m): 75	·	Max. pipe height (m): 30
·	Dimensions (WxDxH, mm): 950 x 330(+30) x 1350	·	Weight: 116 kg



·	Heat Exchanger Water Pressure Drop (kPa): 6	·	Heat Exchanger Water Flow Rate Range (l/min): 31.8
·	Heat Exchanger Dimensions (WxDxH, mm): 112 x 125 x 526	·	Heat Exchanger Weight: 10.8kg
·	Heat Exchanger Water Pipes (BSP, inch): 1 1/4" x2 (Parallel thread)	·	Heat Exchanger Liquid pipe size (OD, inch): 7/8”
·	Heat Exchanger Gas pipe size (OD, inch): 1 3/8”



·	Pump input (Based on EN14511) - Heating: 0.01 kW	·	Pump input (Based on EN14511) - Cooling: 0.01 kW



·	[*]: -15 degC in cooling when using an optional outdoor air outlet guide PAC-SG59SG-E.

Warranty

· PUHZ-W Series Hot Water Heat Pumps come with a 3 year parts, labour and compressor warranty, excluding the Heat Exchanger that has 1 year warranty. For full details view the:

Mitsubishi Electric Warranty Card - Pdf Format (50Kb)

For more information

· Product Brochures - click here.

· Product Manuals - click here.

· Nominal operating condition:
(A7/W35) – Outside air temperature (DB/WB): 7/6°C, Water temperature (inlet/outlet) 30/35°C.
(A35/W7) – Outside air temperature (DB/WB): 35/24°C, Water temperature (inlet/outlet) 12/7°C.

· Power Input: At distance of 1m from outdoor unit.

· Power input figures do NOT include pump input figures as pump input depends on local system configuration.

· Split type specifications are just examples of the case that the units are connected to a plate heat exchanger produced by Alfa Laval. Actual specifications depend on local system configuration. The specifications above are based on Alfa Laval ACH70-50H Heat Exchanger being used

All features and specifications are subject to change and amendment at anytime. Where specifications are critical to design or pre-build we advise that you seek confirmation of accuracy from our product management team on (04) 560-9100.
