Mitsubishi Electric Heat Pumps / Air Conditioners are manufactured with various indoor
unit options. High Wall Type, Ceiling Cassette Type, Floor Mounted Type,
Concealed Ducted Type, and Under Ceiling Type.
Each type of indoor unit has features and advantages depending on your own
particular application.
| High Wall-mounted |
The most popular residential unit choice. As well as taking up no floor space, this unit
offers extremely quiet operation (19dB(A): MSZ-GE25/35VA), the quietest in the industry.
View High Wall-mounted Range |
 |
|
| Compact Floor Console |
The floor mounted units are designed with heating applications in mind. They are
ideal for space heater or gas fire/fireplace replacement. They can be recess mounted into the wall cavity to
give a more shallow profile for hallway installation.
View Compact Floor Console Range |
 |
|
| Ceiling Cassette |
The ceiling mounted units take up no floor space. These units have four way air direction
and adjustable air flow patterns. These units are more suited to larger floor areas.
View Ceiling Cassette Range |
 |
|
| Ceiling Concealed (Ducted) |
These units are mounted in the ceiling space and are unseen in the conditioned
space. The only visible presence is the supply and return air grilles.
View Ceiling Concealed (Ducted) Range |
 |
|
| Ceiling Suspended |
These units are more suited to high stud large room areas. They tend to have high
airflows and are more suited to commercial applications.
View Ceiling Suspended Range |
 |
|

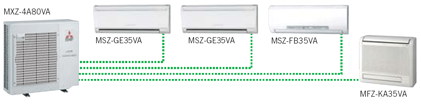

| Multi-Split Systems |
Multiple Indoor Units can be Connected to a Single Outdoor
- Connect from 2 to 8 Indoor Units
- Large variety of Combination Patterns
- Energy Saving and Quiet Operation
- Six Multi-Split Systems from 6.4kW to 16.0kW (Heating)
Our Inverter Multi-Split system models are designed to allow several indoor units
(regardless of capacity or type) to be connected to a single outdoor unit. This
allows you to select the model best suited to each and every room in your home.
The inverter Multi-Split system enhances exterior aesthetics by reducing the number of
outdoor units necessary, while also providing you with an easy and economical way of
adding indoor units at any time.

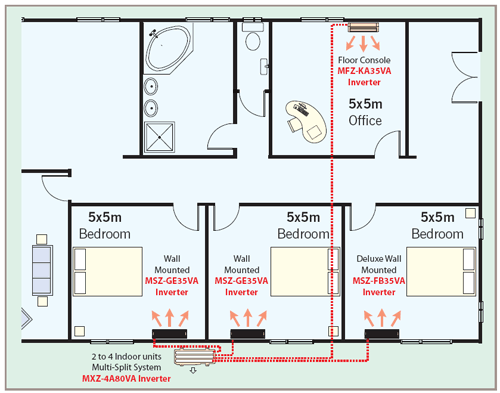

Example: 3x Bedrooms and 1x Office
View Multi-Split Systems
|
|
